304Cu

*Type Austenite

Characteristics

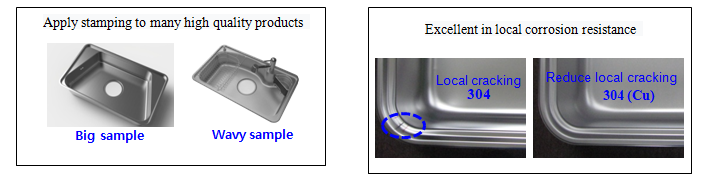

    With an addition of Cu, 304J1 has excellent antibiosis, formability, and deep drawability, also usefor products requiring sanitary environment and local crack.

Chemical compositions and physical properties

Designations Chemical compositions (%) Mechanical properties Physical properties
 JIS   POSCO   C   Cr   Ni   Mo   Orthers   Yield
 Strength
 N/mm²
 Tensile
 Strength
 N/mm²
 Elongate

 %
 Hadness

 Hv
 Specific
 Heat
 J/gºC
 Specific
 Gravity
 Thermal
 Expansion
 Coefficient
 W/m-ºC
 Thermal
 Conductivity
 W/m-ºC
 304Cu   304Cu   ≤0.07   18.0~19.0   8.0~8.5   ≤1.3
 ≤1.0
 Cu 0.2~0.5   ≥267   ≥660   ≥62   ≤150   0.50   7.93   17.3   16.3

Technical excellence in manufacturing processes in customers

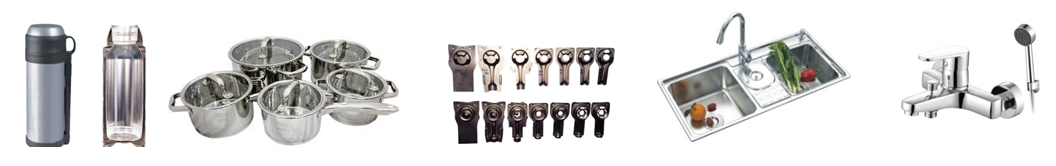

Applications

    - Thermo pots, sinks, kitchen appliances with deep bottoms, products requiring centrifugal stamping ...
